Fittes Brack Kit [Luxe]

Fittes  |  SKU: 08BRACK-12-2  |  Barcode: 628504056660
$9900 CAD
Shipping calculated at checkout.
Size

Earn [points_amount] when you buy this item.

Structural support kit for floating shower seats, suspended shelving/furniture, and more. It's modular design can be combined to accommodate structures with longer spans.

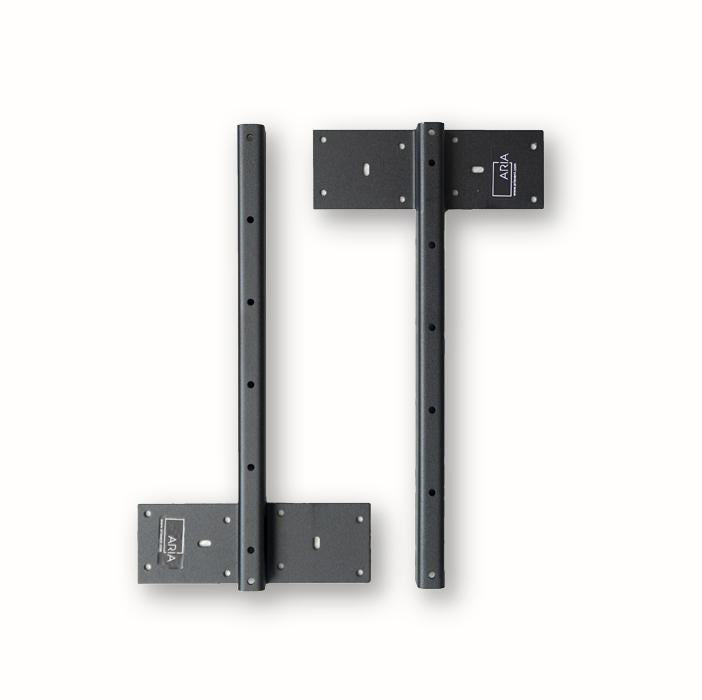

  • Kit contains two brackets and two sets of screws. Additional 2 3/4" screws required if combining kits are not included.
  • Manufactured in Canada

Features

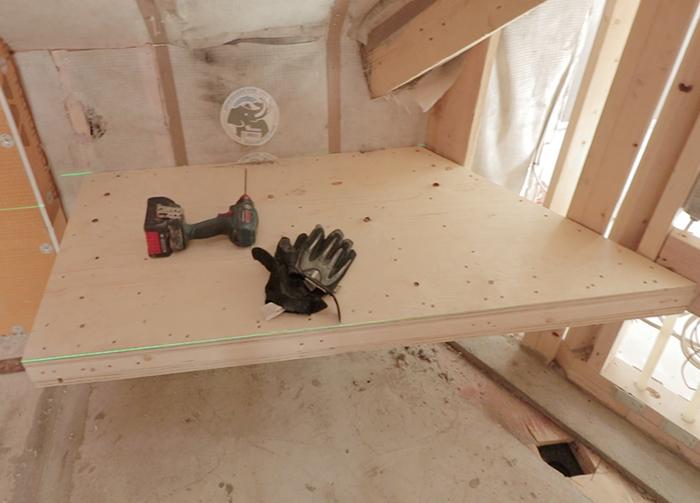

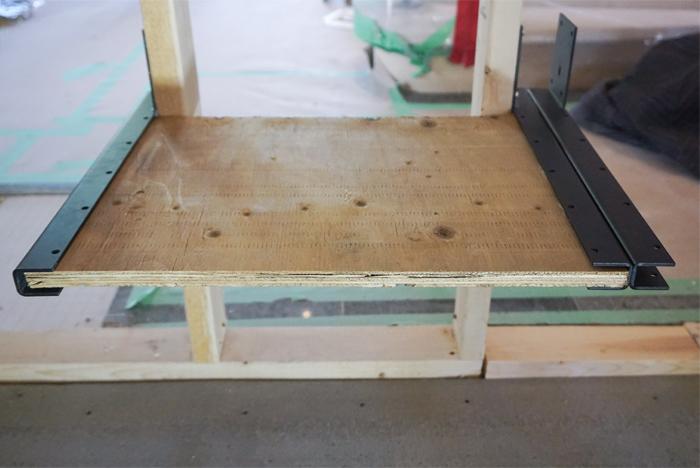

  • Time saving installation for floating bench/shelf
  • Highest rated capacity vs. competitors (up to 350lbs per Brack-14)
  • Modular application
  • Combine kits as necessary [recommend 1 kit per 16'' span - will vary by project]
  • Additional 2 3/4" inch screws are required if combining kits. This is not included with the purchase of this product and must be sourced outside of Fittes

Specifications + Install Guides

  • Material - galvanized sheet metal with a long lasting powder coating (8 gauge)
  • Recommended span between brackets is 16" on centre. Depending on weight of finishing material and application, span can vary.
  • Each bracket is rated to hold 350 lbs.
  • Studs must be a minimum of 2"x4"
  • Install is best done by a Pro.

DETAILED DIMENSIONS
INSTALL GUIDE
INSTALL VIDEO

FAQ

At what point are these brackets installed in the build process?

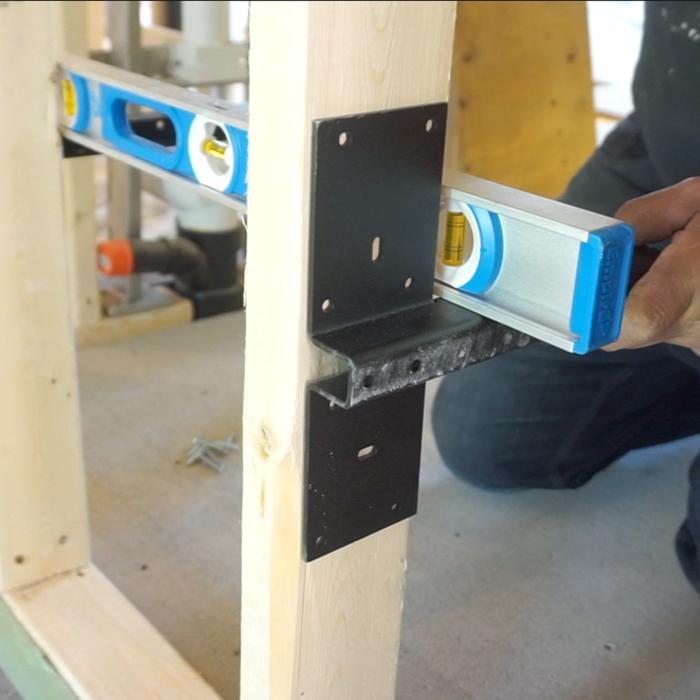

Brackets must be mounted at the rough-in stage. You must have access to the studs inside the framed wall to properly mount.

What is this used for?
The Brack Kit [Luxe] is a structural support for any application where there is an engineered suspended structure. (ie. floating shower seat, shelves, vanity, etc.)

Can I use foam board in between the brackets?
No - foam board is not structurally sound. You must use a structurally sound material (ie. 3/4" plywood, aluminum honeycomb, solid wood, etc.)

For shower application, can I tile directly on top of the engineered seat?
No - you absolutely must waterproof prior to tiling.

Can I fasten the brackets on a 2x2 stud?
No - a minimum 2x4 stud in required. 2x6, 2x8, studs are also compatible.

Can I fasten the brackets to metal stud?
No - wood studs only.
