Graco PowerFill Cordless Loading Pump Repair Parts

Graco  |  SKU: 08133100
$1470 CAD
Shipping calculated at checkout.
Part Number

Earn [points_amount] when you buy this item.

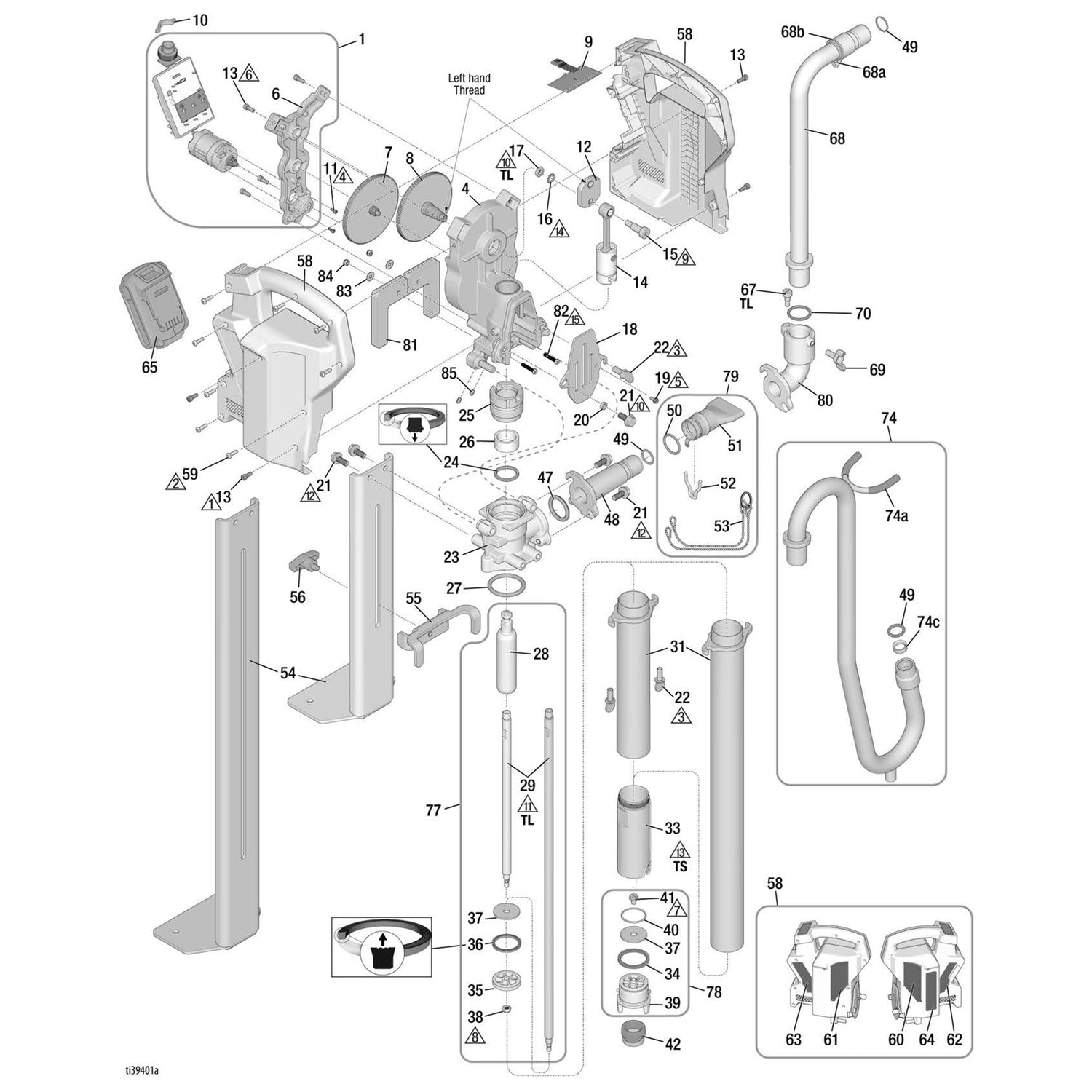

Parts for PowerFill 3.5 Standard, Pro, and XL Pro.

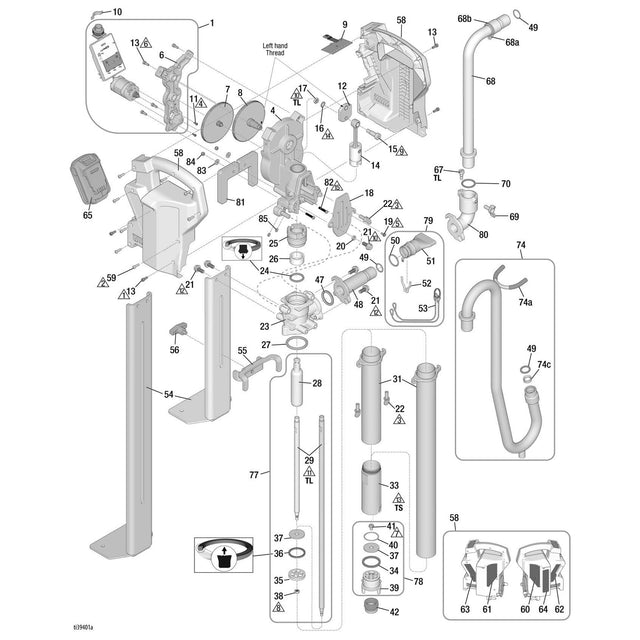

Reference Number Part Number Description
1 18F104 KIT, assembly, motor/smart control, includes 6, 13
4 18F110 HOUSING, drive, sub-assembly, includes 18, 19, 20, 21, 22, 81, 82, 83, 84
6 — HOUSING, motor, machined
7 18F107 KIT, gear, stage one, sub-assembly
8 18F108 KIT, gear, stage two, sub-assembly
9 — SWITCH, board
10 17D843 SIGHTGLASS
11 16G740 SCREW, SHCS
12 19B807 CRANK, drive, output
13 133174 SCREW, cap, socket head
14 18F109 KIT, rod, connection, sub-assembly
15 125027 SCREW, shoulder, socket head, M8
16 133103 WASHER, lock, external tooth, M8
17 133104 NUT, hex, thin, M8 x 1.25
18 19B810 COVER, pro connect, 2 PIN
19 116431 SCREW, mach, hex wash hd.
20 133096 SPACER
21 118241 SCREW, cap, flange, hex hd.
22 132981 SCREW, thumb 5/16-18 UNC
23 19B798 HOUSING, pump, machined
24 18C888 SEAL, throat
25 18F102 NUT, packing, includes 26
26 — WIPER, fiber, pump rod

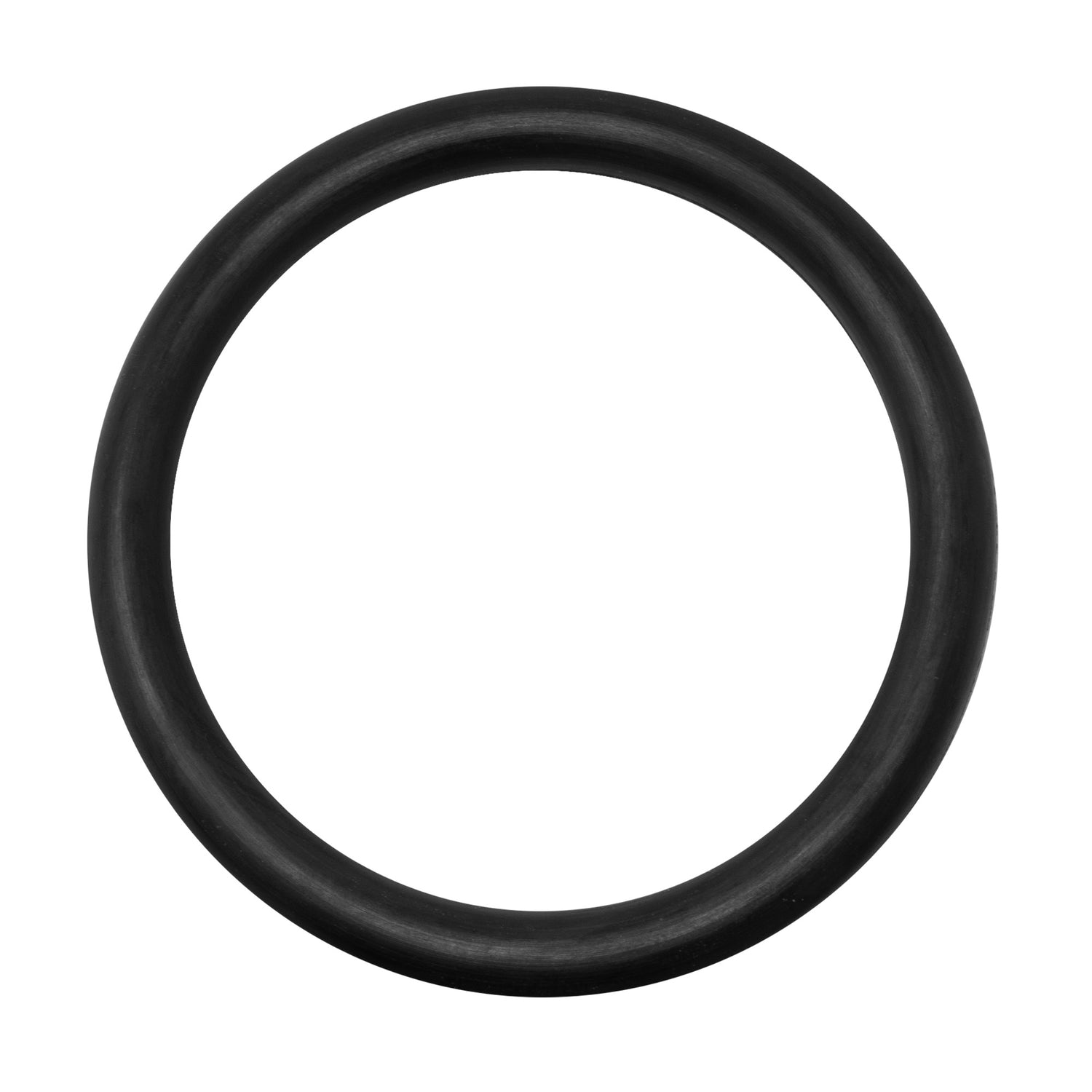

27 133100 PACKING, O-ring, BUNA-N, -327, 70 DUR
28 18F099 ROD, throat, piston
29 — ROD, piston, extension
31 — CYLINDER, pump, upper
33 18F098 CYLINDER, lower

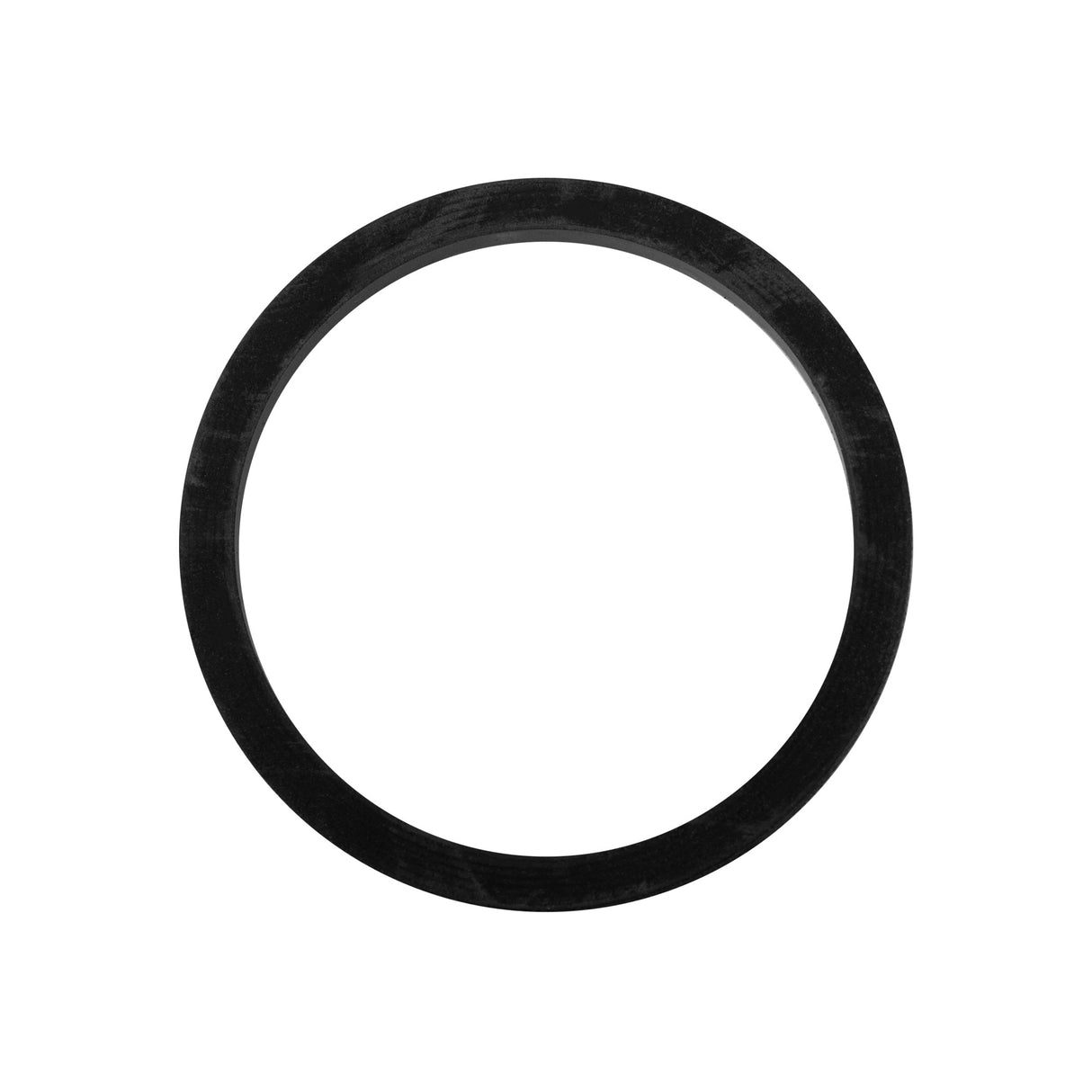

34 133017 O-RING, square
35 18C891 PISTON, seal housing
36 18C890 SEAL, piston

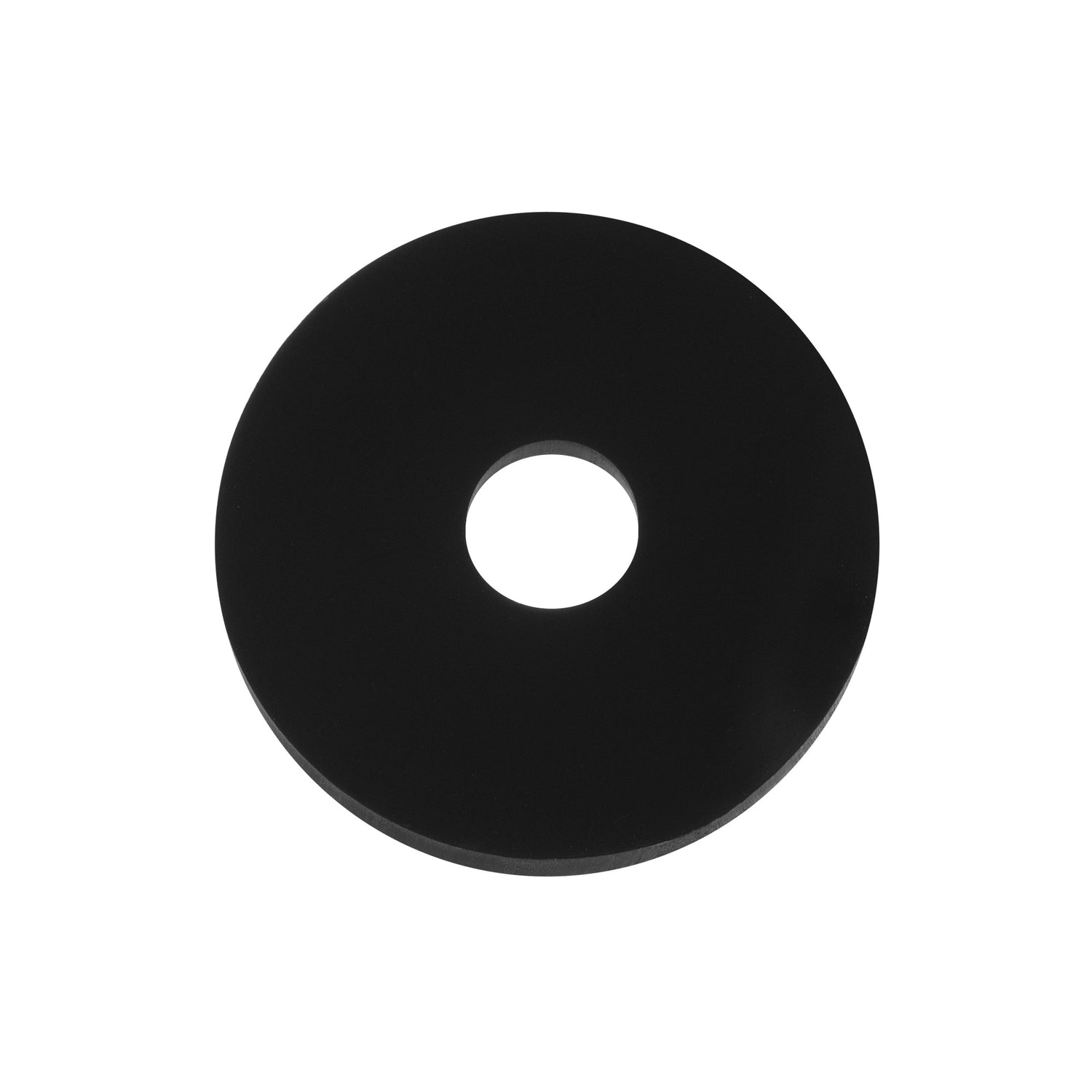

37 18C889 VALVE, check flap
38 133098 NUT, lock, 1/4-28 UNF
39 19B946 HOUSING, inlet, assembly

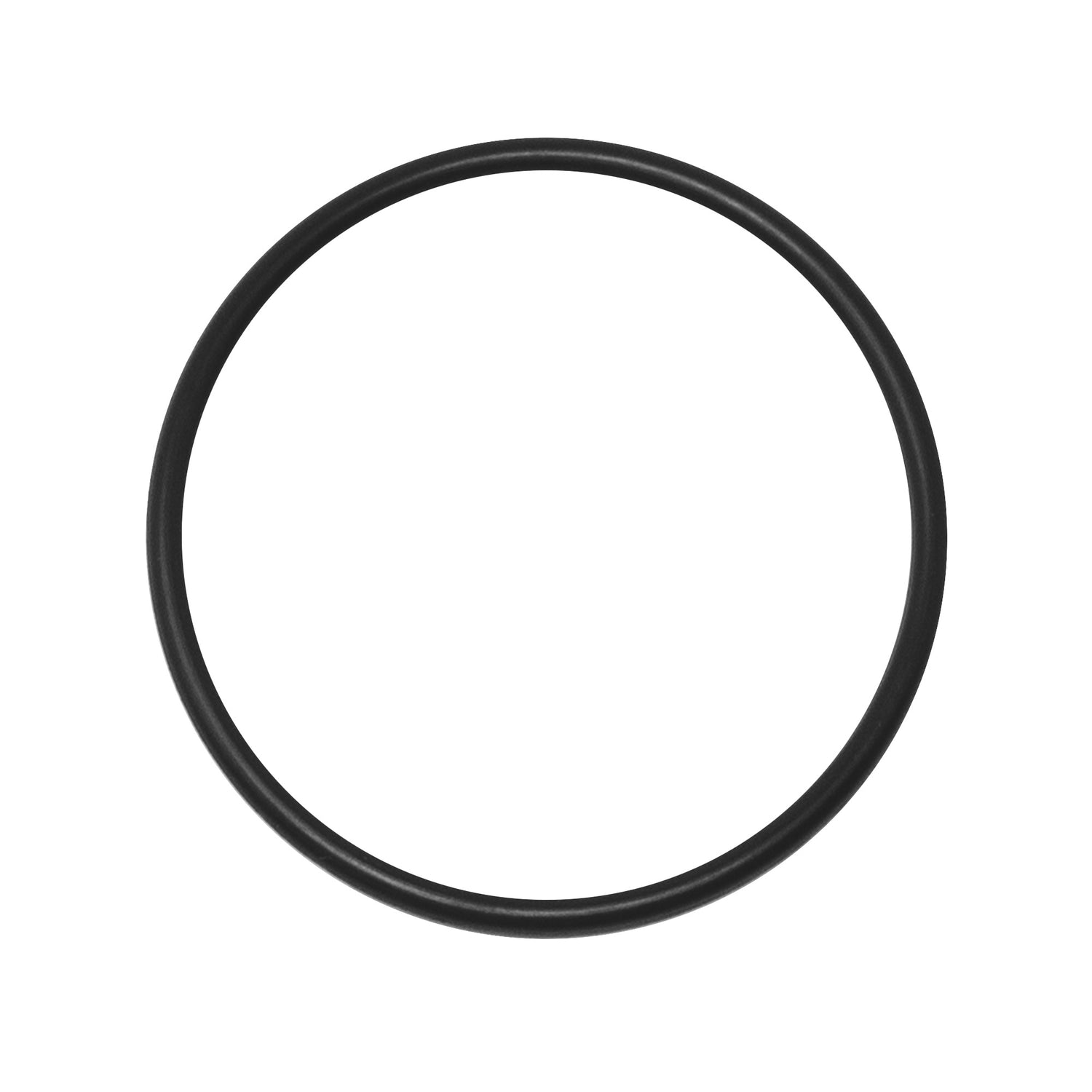

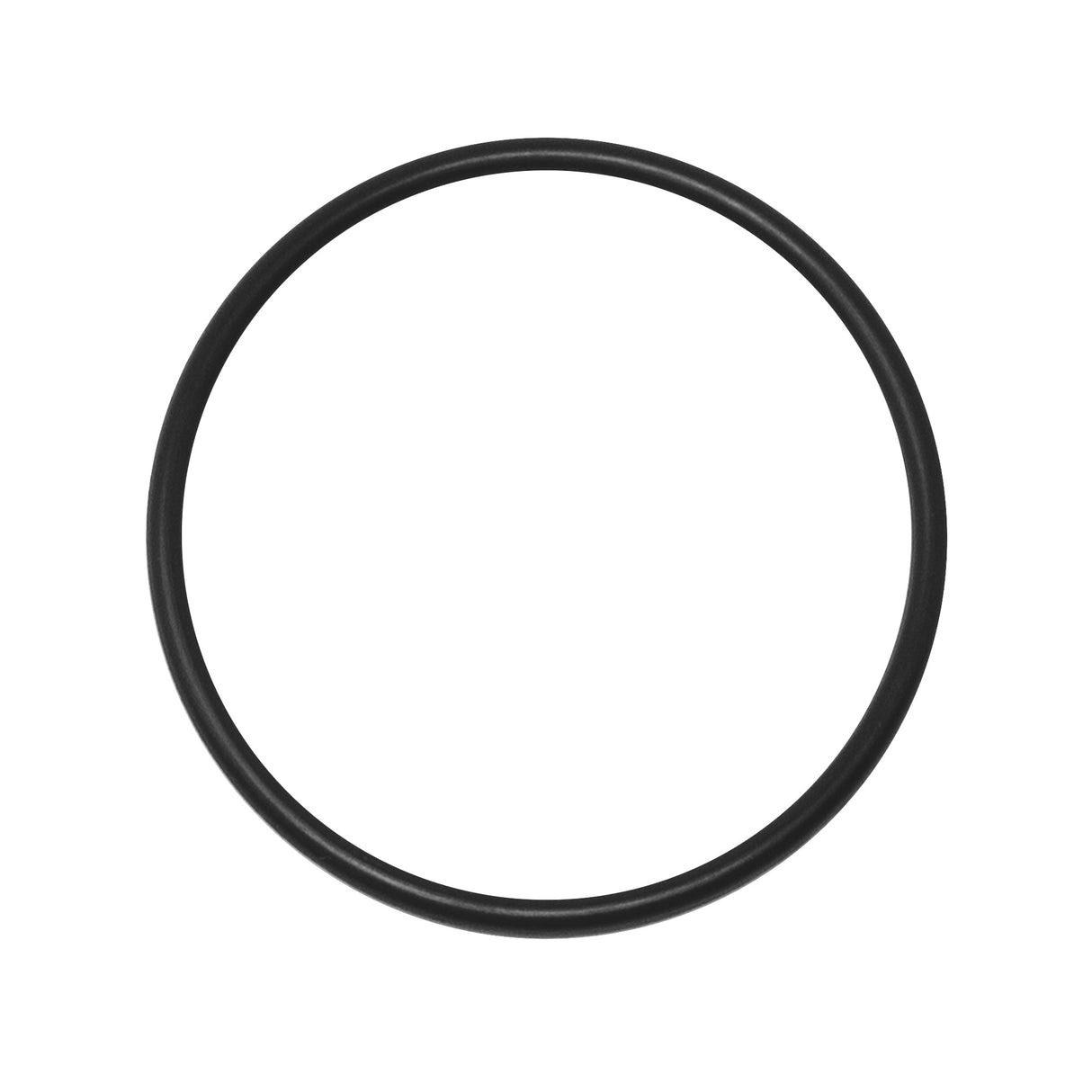

40 120818 PACKING, O-ring
41 133079 SCREW, mach, hex, washer hd.
42 18D170 FILTER, inlet

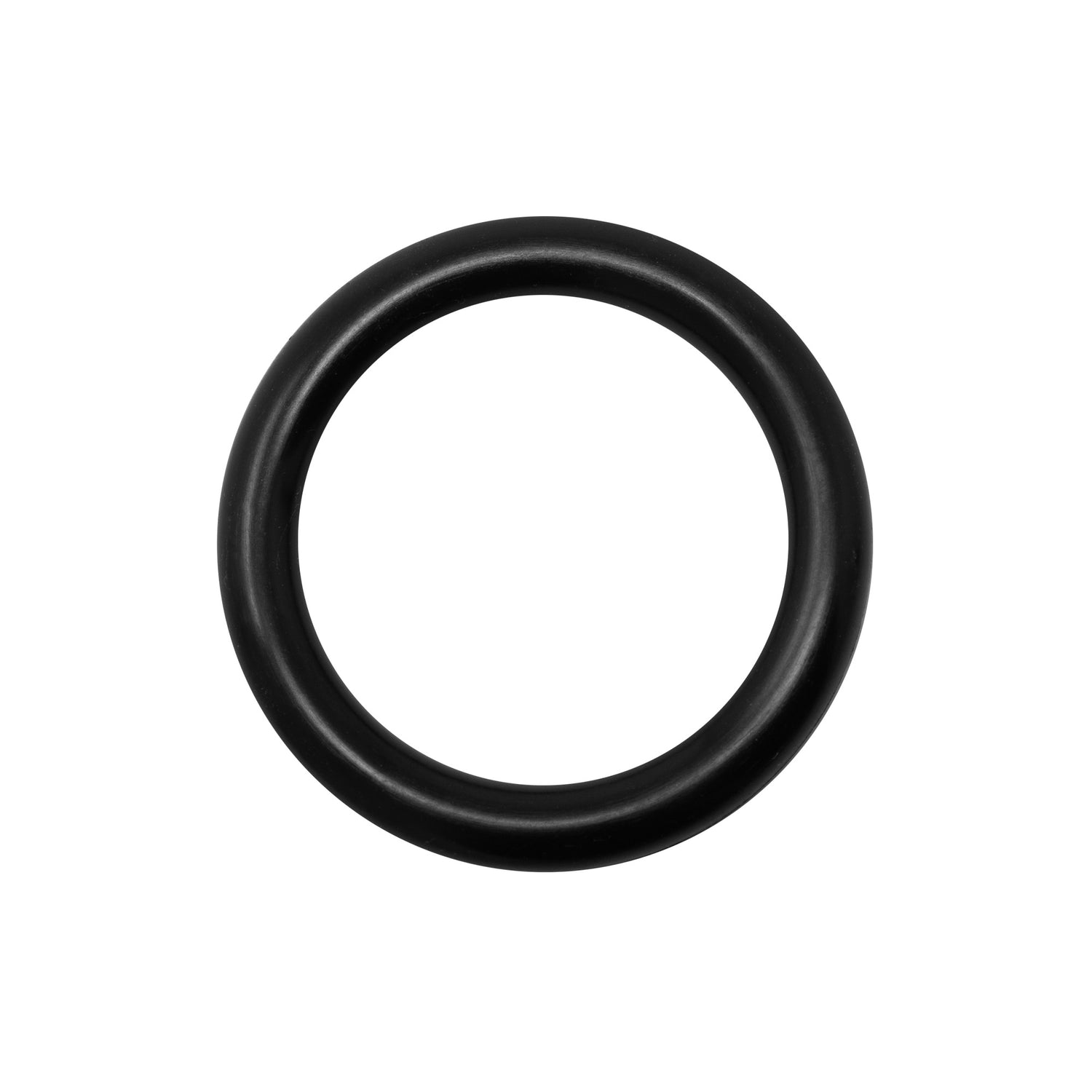

47 133116 O-RING, packing, 321, BUNA-N
48 19B800 ADAPTER, outlet, standard, machined

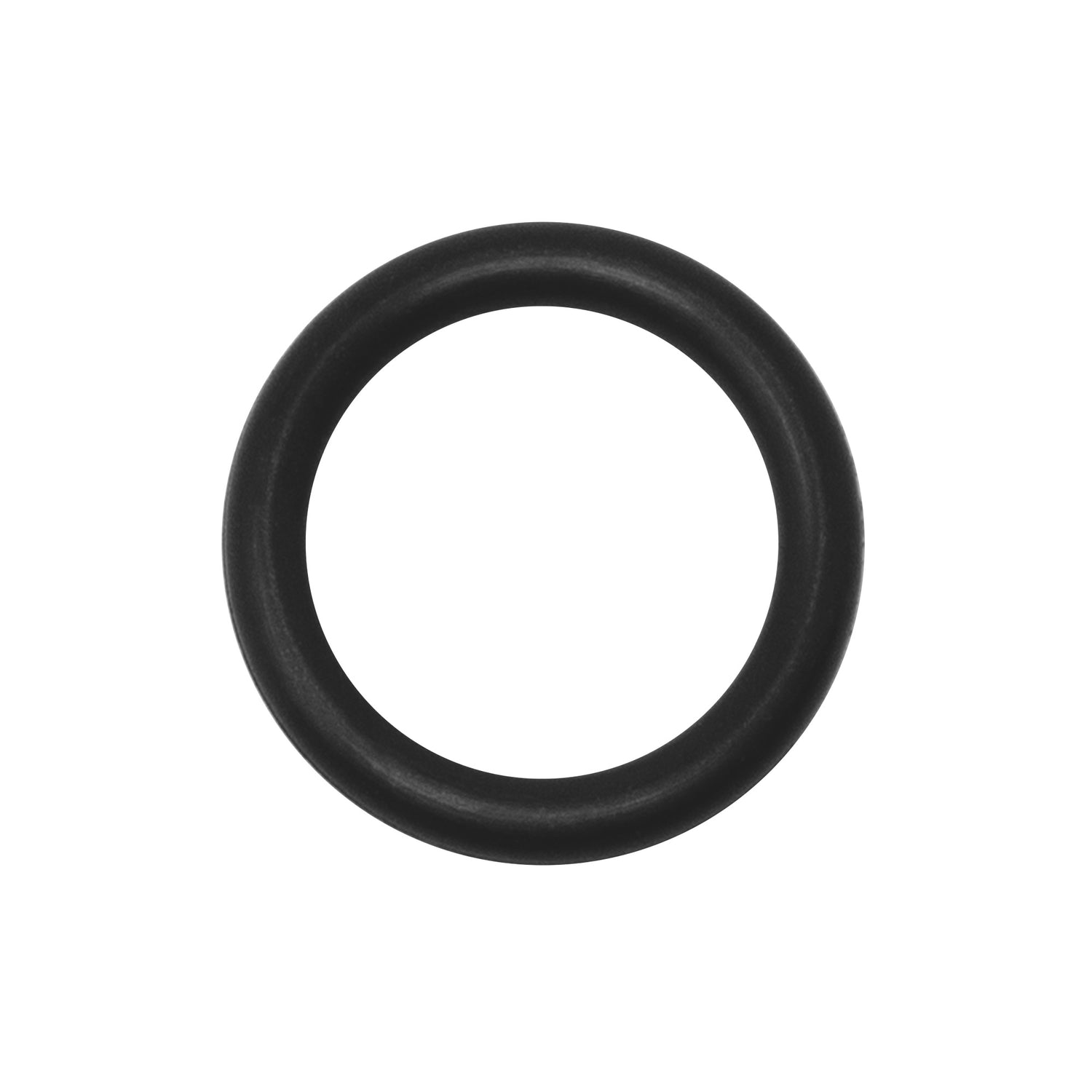

49 155332 PACKING, O-ring

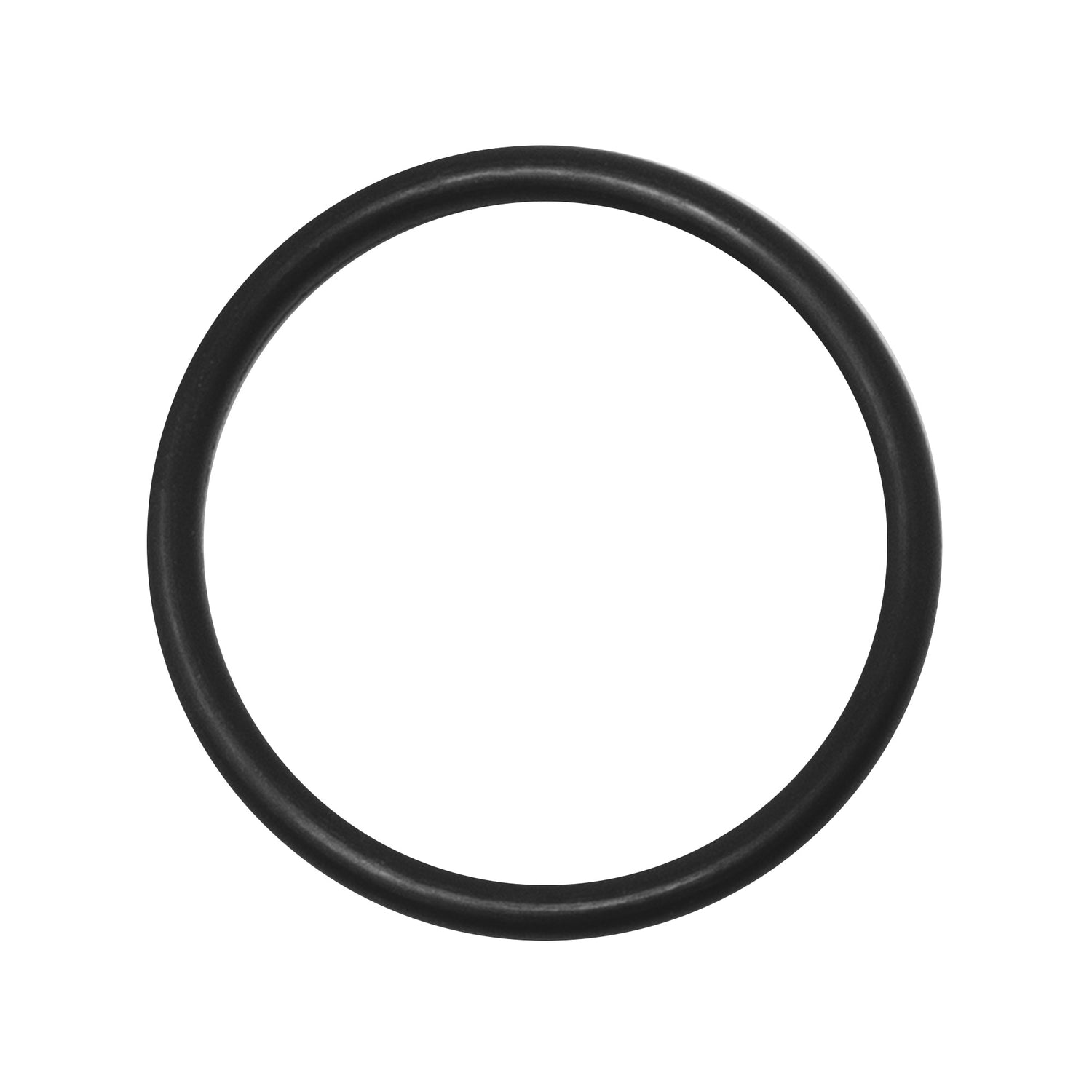

50 121110 PACKING, O-ring, BUNA-N, 122
51 19B953 ADAPTER, fill, box tool
52 133080 CLIP, retainer
53 18F096 CHAIN, ring, lanyard
54 18C876 BRACKET, foot
55 18C880 BRACKET, stabilizer
56 18C883 KNOB, tee, 5/16-18 x 3/8
58 18F111 KIT, clamshell, includes 60–64
59 119236 SCREW, machine, torx, pan head
60 18D095 LABEL, brand, Graco, right
61 18D096 LABEL, brand, Graco, left
62 — LABEL, brand, right
63 — LABEL, brand, left
64 — LABEL, safety, warning
65 17P474 BATTERY, serial, DEWALT, 20V
66 17P475 CHARGER, DEWALT, 20V
67 19B947 SCREW, clamping, adapter
68 — TUBE, fill, includes 68a, 68b
68a — RING, retainer
68b — RING, retaining
69 133129 SCREW, wing 5/16-18

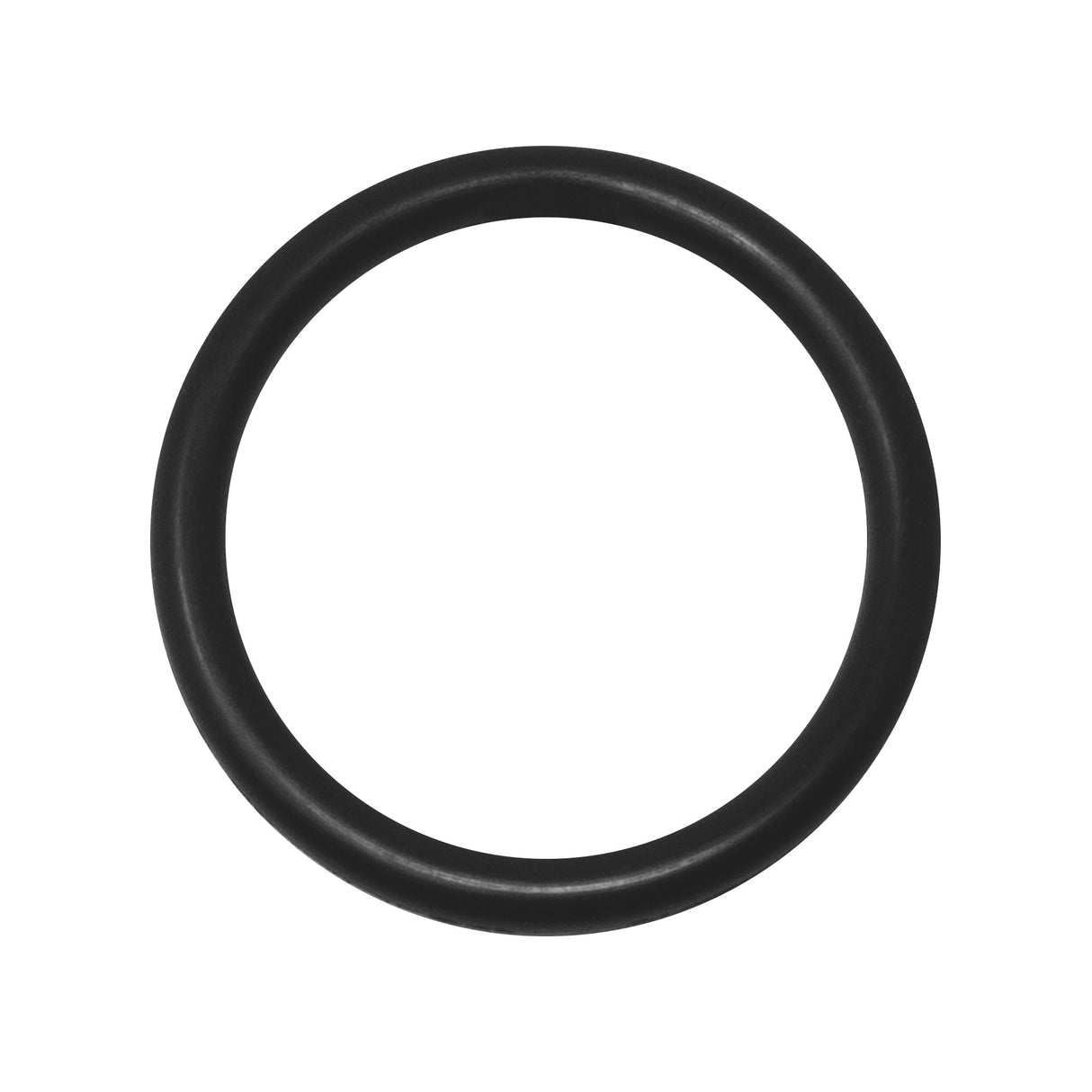

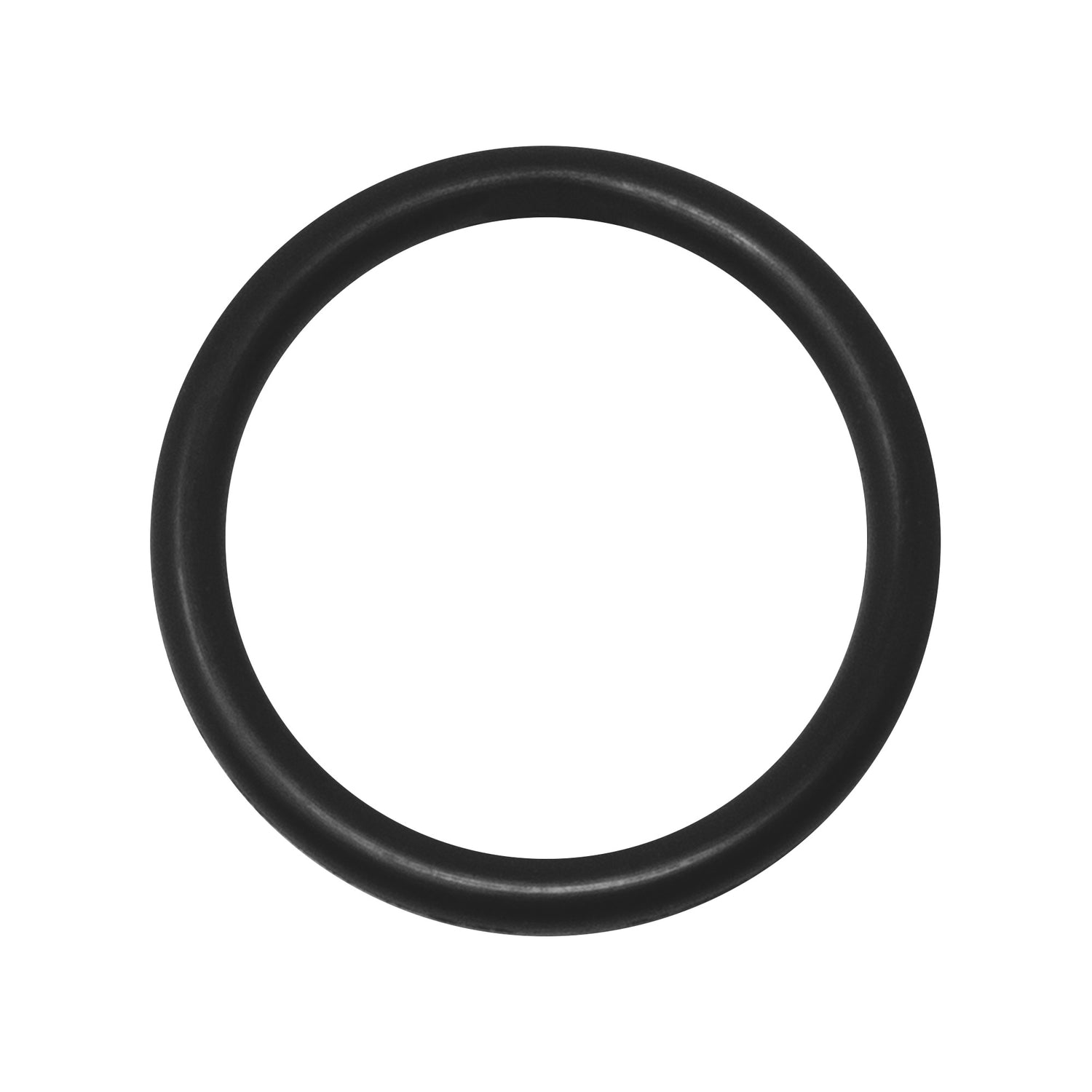

70 154662 O-RING
74 — KIT, goose neck assembly, complete
74a 133147 CAP, round, vinyl
74c
SPACER, tube, gooseneck
77 18F100 KIT, piston, assembly, includes 28, 29, 35, 36, 37, 38, 24
78 18F097 KIT, repair, inlet assembly, includes 34, 37, 39, 40, 41
79 18D169 KIT, assembly, box filler, includes 50, 51, 52, 53
80 19B799 ADAPTER, outlet
81
LEG, Powerfill 3.5
82 133298 SCREW, cap, socket hd.
83 112776 WASHER, plain
84 115483 NUT, lock
