Reveals are a great way to add interesting design elements to a bare wall — they give any room in which they’re installed a sleek, modern and unique quality. Trim-Tex’s Architectural Reveal Bead creates the sharpest, cleanest aesthetic reveals in drywall you can get, with 1⁄8" of built-in expansion control.
-
AS5150 - 1/4" x 1/4" - 25
- AS5160 - 1/2" x 1/4" - 20
- AS5110 - 1/2" x 1/2" - 20
- AS5210 - 1/2" x 3/4" - 15
- AS5310 - 1/2" x 1" - 15
- AS5315 - 1/2" x 2" - 10
- AS5320 - 5/8" x 1/2" - 15
- AS5325 - 5/8" x 5/8" - 15
-
AS5330 - 5/8" x 3/4" - 15
- AS5340 - 5/8" x 1" - 12
Features
- Create stunning reveals
- Easy to install
- Durable & resilient
Installation Guide
Architectural Reveal Bead Installation Guide-1
Reveal Radius Chart
Submittal Sheets
Architectural Reveal Bead Submittal Sheet R1
SDS
SDS - Rigid Vinyl Drywall Accessories 01Aug2018

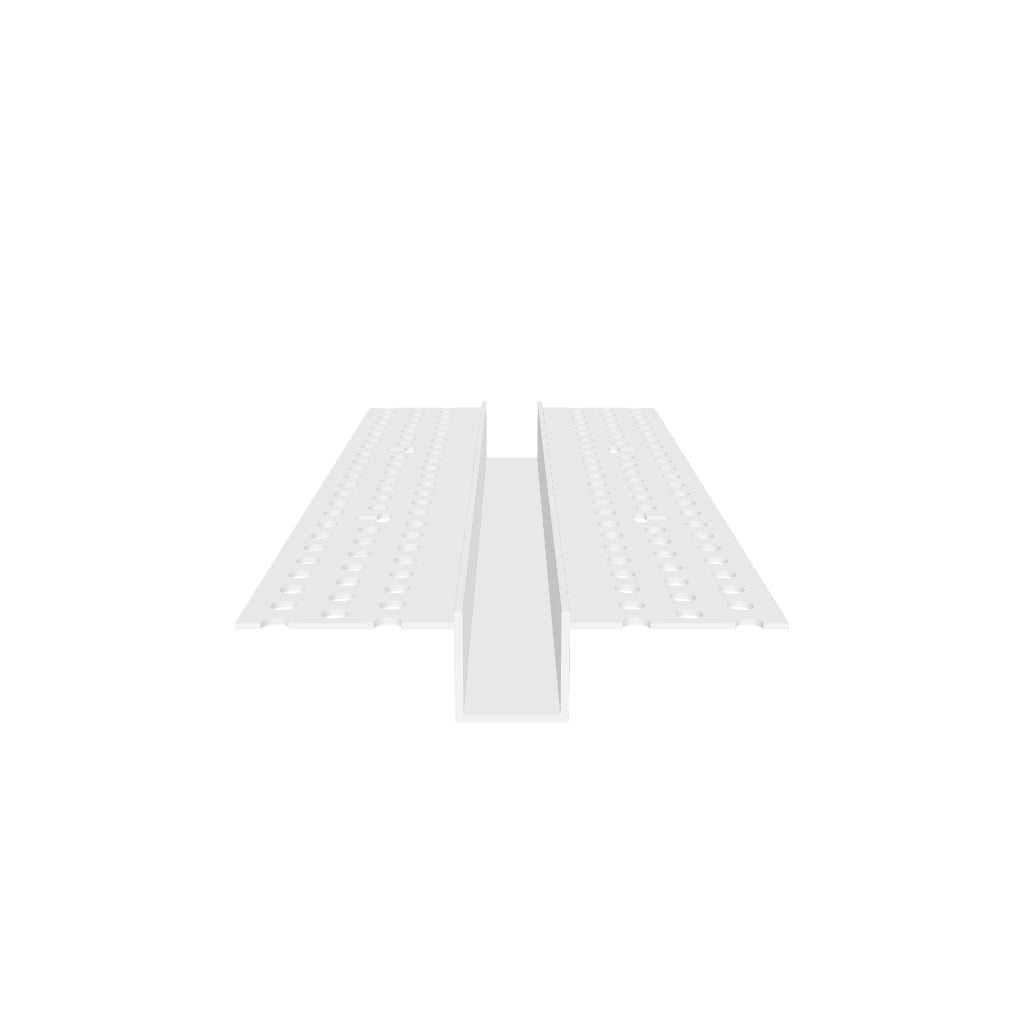

"As5110 Architectural Reveal Bead" (https://skfb.ly/owZAv) by Trim-Tex is licensed under Creative Commons Attribution (http://creativecommons.org/licenses/by/4.0/).
