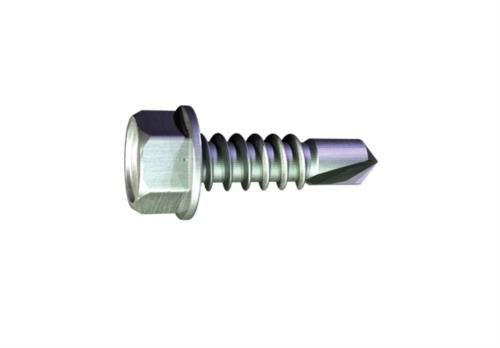

Grabber Hex Head Framing Screws - Drill Point - Clear Zinc

Attaches heavy gauge 20-8 ga. metal to metal. Hex head framing screw used in heavy gauge metal to metal applications where high torque is required.

Specifications

• Gauge: #10
• Head Type: Hex framing
• Thread Type: Single lead
• Coating: Clear zinc

Installation Guidelines

Use a standard screwgun with a depth-sensitive nose piece. Suggested screwgun specification for optimal performance – 4 amps minimum and RPM range of 0 to 2,500.

• The hex head is fully seated when the head is flush with the work surface.
• Overdriving my result in fastener failure or strip out of the work surface.
• The fastener must penetrate beyond the metal three full thread pitches.

Hydrogen Embrittlement:
Grabber’s 10, 12 & 14 gauge zinc-plated drill point fasteners are manufactured in ISO 9002 factories, plated as prescribed in the ASTM F1941-10 Standard Specification for Electrodeposited Coatings on Threaded Fasteners, and post-plating baked according to the process articulated in SAE AMS 2759/9, Hydrogen Embrittlement Relief (Baking) of Steel Parts, Section 3.3.3.1, and SAE J78, which calls for a four-hour minimum time for baking out entrapped hydrogen after acid treating the parts.

All GRABBER® screw products are manufactured in facilities that are ISO 9002 and ISO 14001 certified and approved.
