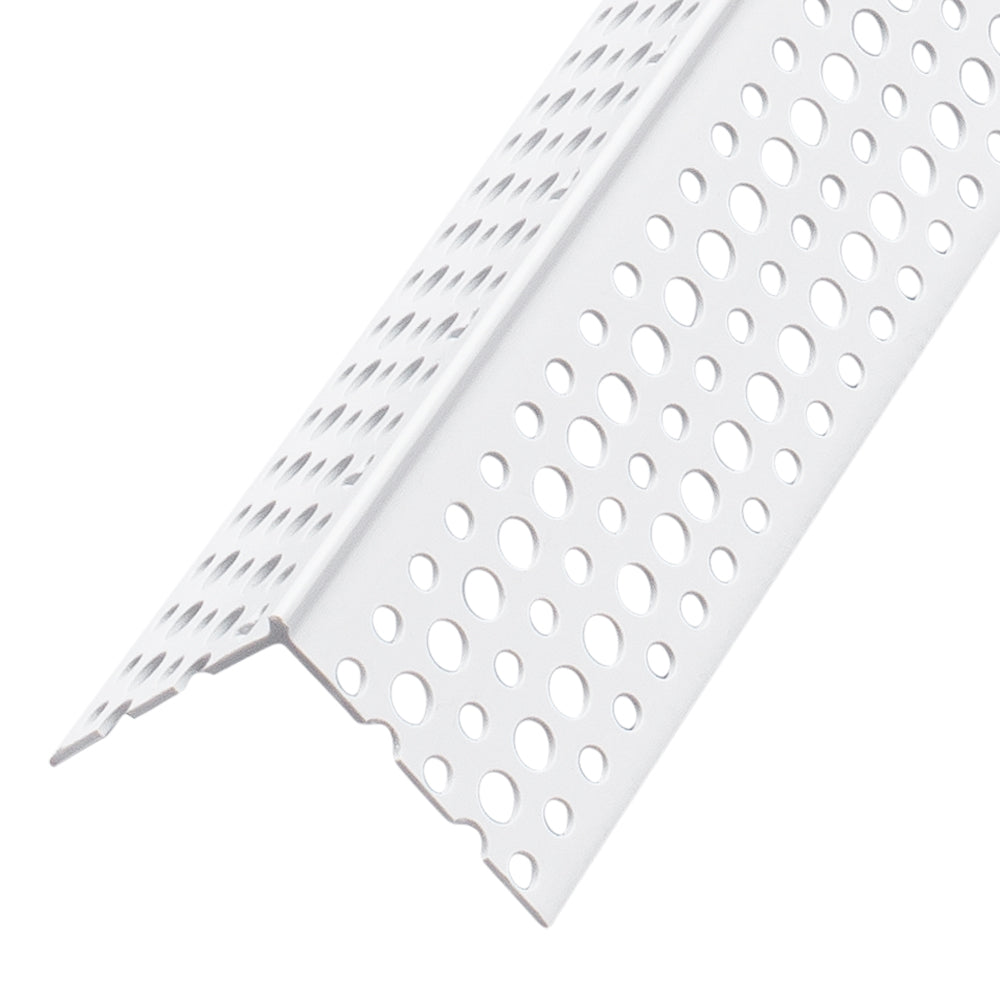

The Rigid Low Profile Corner Bead & Archway is a variation on our standard 90-degree vinyl corner bead that requires less mud and no setback to finish. With its sharp rigid nose, this is a great choice for a level-five finish. Available with an 81-degree closed angle (CA) for use with twisted or warped framing.

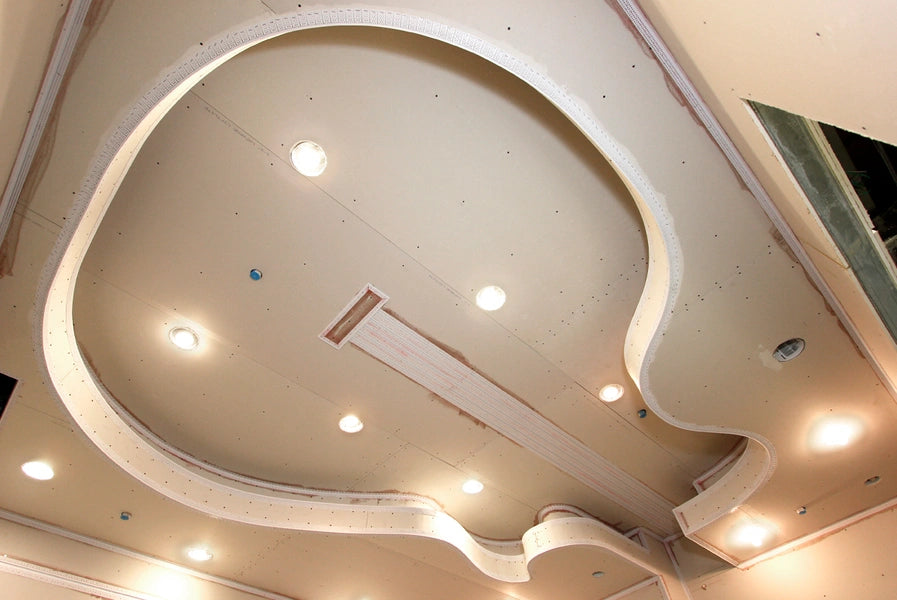

No setback required. Installs with 847 Spray Adhesive and staples. Archway minimum 10" inside radius or 22" outside radius. Available with an 81º closed angle (CA) for use with twisted or warped framing.
Features
- Clean, sharp nose
- Easy to install
- Durable & resilient
Installation Guide
Rigid Jumbo Low Profile Corner Bead Installation Guide
Rigid Jumbo Low Profile Archway Installation Guide
General Corner Bead Installation Instructions
Submittal Sheets
Rigid Jumbo Low Profile Corner Bead and Archway Submittal Sheet R1
SDS
SDS - Rigid Vinyl Drywall Accessories 01Aug2018

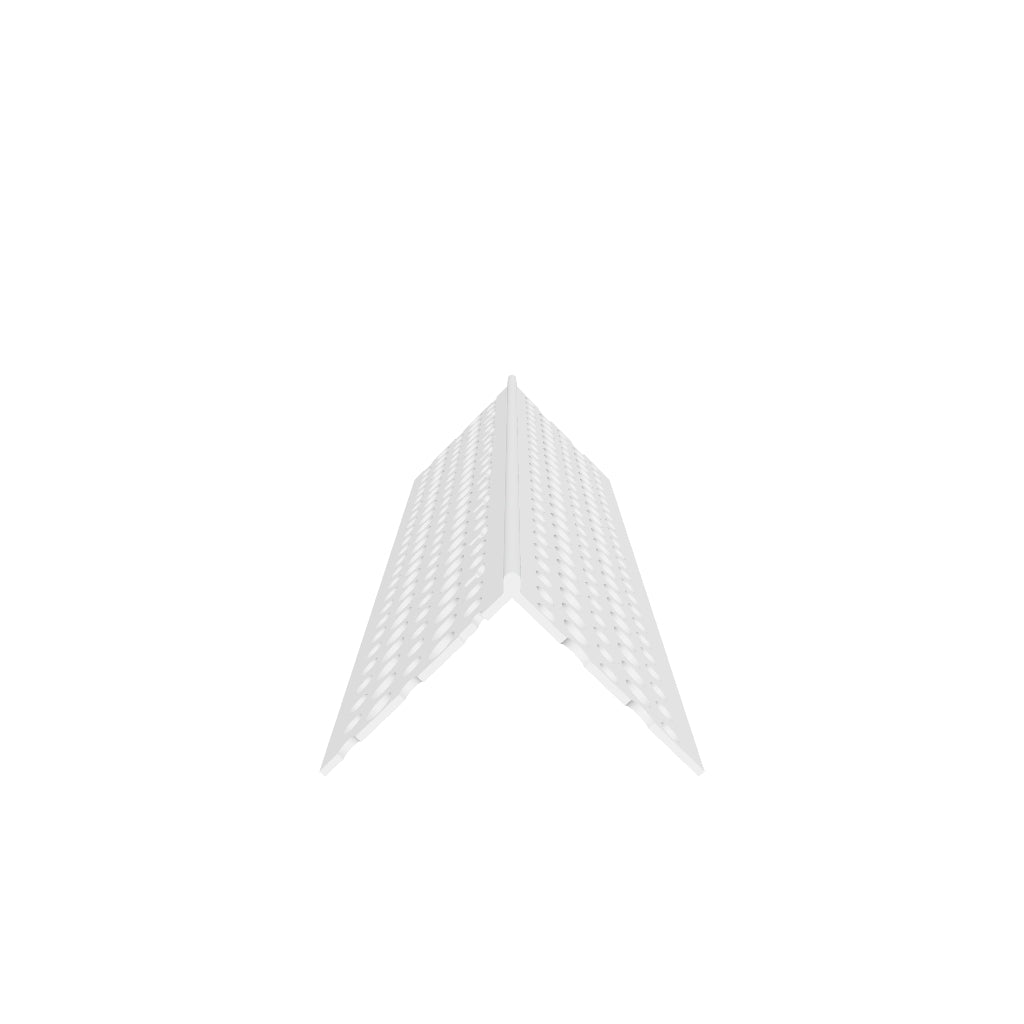

"R010LP - Rigid Low Profile Corner Bead" (https://skfb.ly/owRWY) by Trim-Tex is licensed under Creative Commons Attribution (http://creativecommons.org/licenses/by/4.0/).
